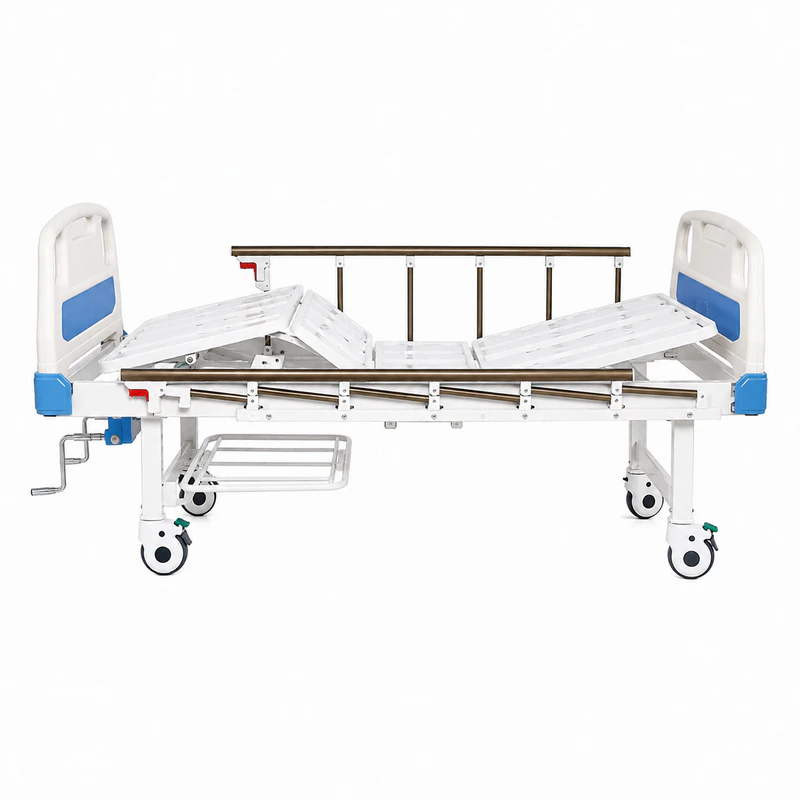

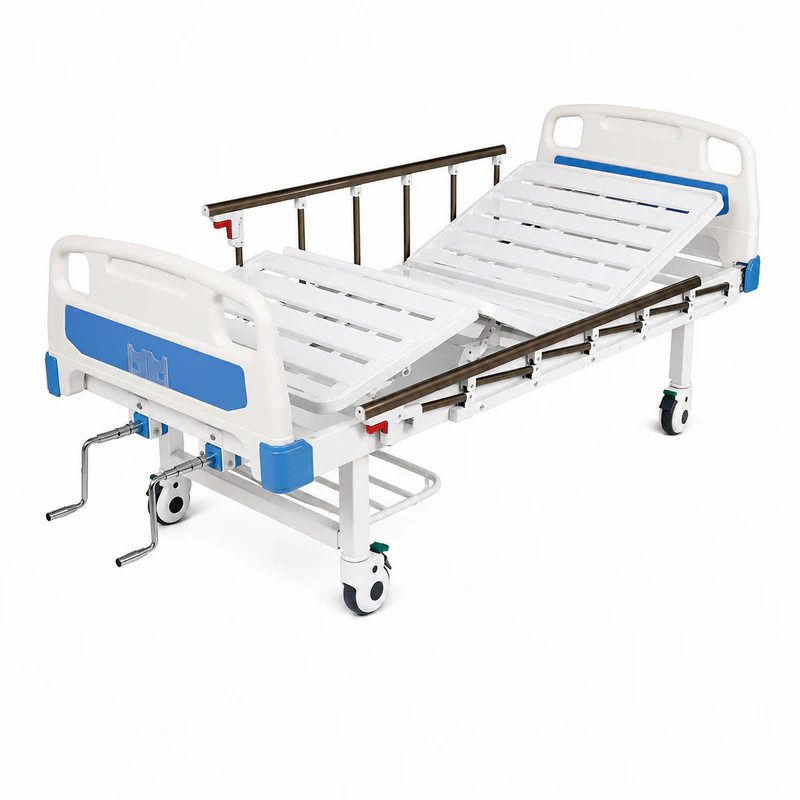

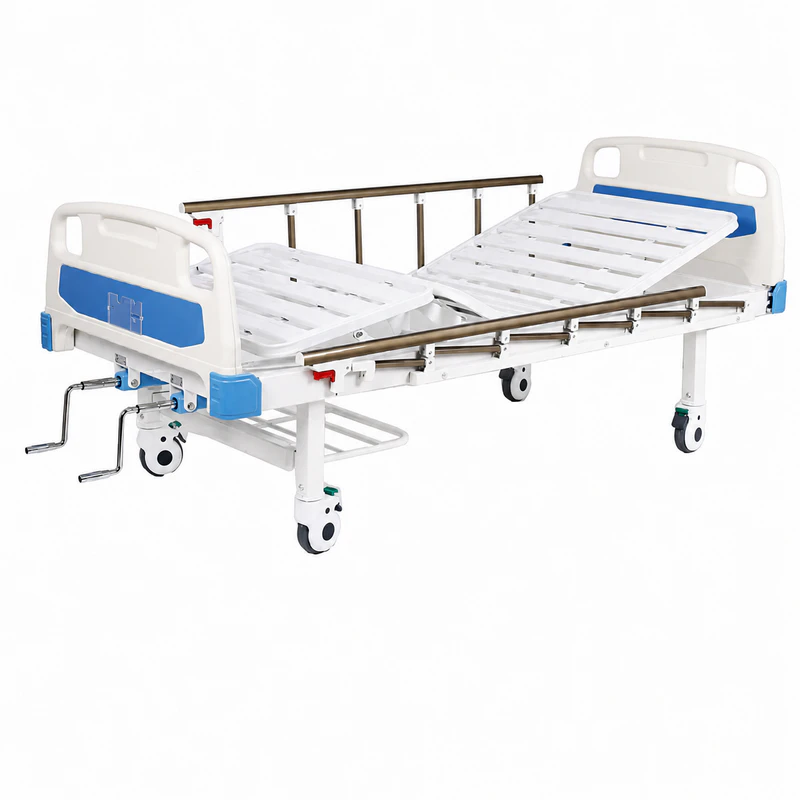

The A4 Double Crank Nursing Bed (M-shaped surface) is a manual hospital bed designed for patient positioning, recovery support, and long-term clinical care in medical and nursing environments.
Product Overview
The A4 bed is used in hospitals, rehabilitation centers, and nursing facilities where stable and safe patient positioning is required. It uses a double crank manual system to adjust backrest and leg sections for daily nursing, therapy, and post-operative recovery.

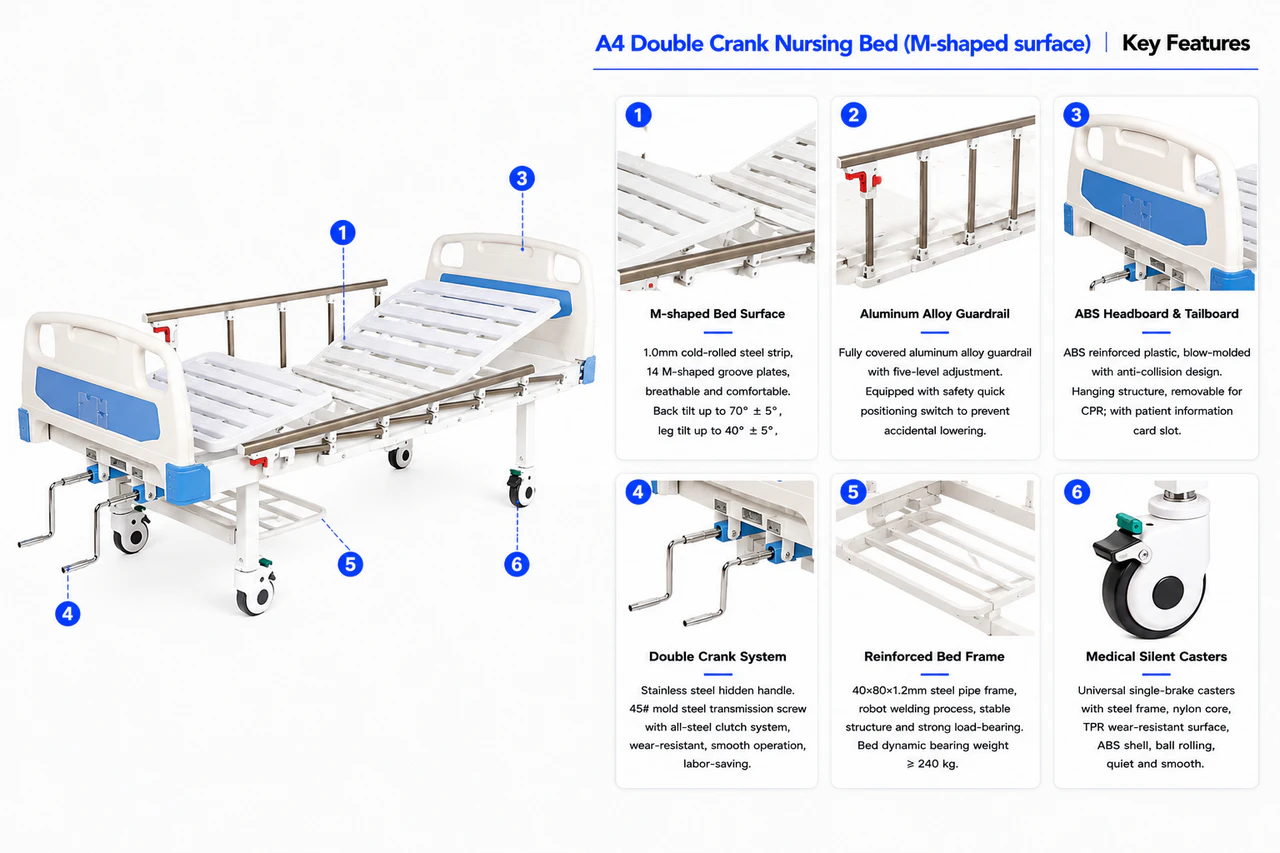

The bed features an M-shaped anti-slip steel surface, improving patient stability during use. The structure is reinforced with a high-strength steel frame and aluminum alloy side rails, designed for durability and continuous hospital operation.
Application
- Hospital inpatient wards
- Rehabilitation departments
- Nursing homes
- Post-surgery recovery units
- Long-term care facilities
| Parameter | Specification |
|---|---|
| Back tilt | 70° ± 5° |
| Legs tilt | 40° ± 5° |
| Bed dynamic bearing weight | ≥ 240 kg |
| Bed board material | 1.0mm cold-rolled steel strip, 14 M-shaped groove plates |
| Bed frame material | 40×80×1.2mm steel pipe |
| Handle type | Stainless steel hidden handle |
| Transmission screw | 45# mold steel, all-steel clutch system |
| ABS dust cover | Yes |
| Headboard/tailboard material | ABS reinforced plastic, blow-molded |
| Headboard/tailboard mounting | Hanging device, removable for CPR |
| Patient card slot | Yes |
| Guardrail type | Fully covered aluminum alloy |
| Guardrail beam | Electrophoretic aluminum alloy |
| Guardrail column | 5 aluminum alloy pipes with steel joints |
| Guardrail safety | Quick positioning switch |
| Caster type | Universal single-brake, plug-in rod |
| Caster frame | Steel |
| Caster wheel core | Nylon (PA6) |
| Caster wheel surface | TPR (wear-resistant) |
| Caster shell | ABS |
| Caster rotation | Ball rolling |
| Infusion stand sockets | 4 |
| Infusion stand | Stainless steel, manual telescopic dual-segment, height 1000–1600mm |
| Welding process | Robot welding |
| Surface coating | Electrostatic spraying, dual coating technology |
